Structural steel and miscellaneous metals detailing across sectors — led by a Tekla BIM Awards category winner and other publicly visible, architecturally exposed work. Each project is judged by the metrics fabricators care about: scope, software, and how cleanly it went together in the field.

Featured case studies

Architectural steel, detailed to fabricate.

Both projects share a signature: non-orthogonal, architecturally exposed geometry that most shops decline — modeled in Tekla and delivered fabrication-ready.

Erected exposed architectural steel canopy at the University of Minnesota Scholars Walk, between Keller Hall and the Mechanical Engineering Building

Winner · 2016 Tekla BIM Awards Higher Education · AESS + Misc Metals

Scholars Walk / Keller Canopy

University of Minnesota — Minneapolis, MN

Woodell detailed the exposed architectural steel canopy along a ~250 ft section of Scholars Walk on the north side of Keller Hall, connecting Keller Hall to the Mechanical Engineering Building. Tekla named it winner of the Small Projects category in the 2016 Tekla North America BIM Awards.

The ~50 ft east–west canopy is completely suspended from Halfen Detan rods, its V-shaped main members each built from four tapered MC12 channels joined with continuous full-penetration welds. The ~180 ft west canopy uses offset "check-mark" frames on W8 verticals, with north-side columns hung entirely from the Detan rods on a floating (anti-twist) base connection to the concrete pier.

Built-up HSS-6×4 columns with access holes and removable panels for concealed light-fixture wiring
HSS-5×2 frames carrying lighted glass display cases; a bar-grating trellis on tapered MC10 channels
Stainless-steel handrail on painted plate fins, plus an ornamental steel gas-meter enclosure

Market

Higher Ed

Scope

AESS + Misc

Software

Tekla

Award

2016 Winner

Photo & Tekla model: Woodell Detailing, via the Tekla BIM Awards.

Featured entry · 2021 Tekla BIM Awards Public · Parks & Recreation

Lilydale Picnic Shelter

Lilydale Regional Park (Pickerel Lake) — Saint Paul, MN · Architect: VJAA

For this VJAA-designed park shelter, Woodell detailed a striking zigzag roofline of skewed, seemingly random elevations. The built-up columns and soffit edge are weathering steel (Corten) left fully exposed to view, so every member, work point and connection had to be right — there is nowhere to hide.

The challenge: multiple skewed lines of steel that fight a smooth roofline flow, all in exposed Corten. The result: Woodell used Tekla to visualize and resolve the geometry into a clean, coordinated, fabrication-ready model — featured in the 2021 Tekla North America BIM Awards.

Market

Public / Civic

Scope

Structural · AESS

Software

Tekla

Recognition

2021 Entry

Photo & Tekla model: Woodell Detailing, via the Tekla BIM Awards.

From model to built

The award-winning canopy, end to end.

One intelligent Tekla model drives the drawings, the machine files and — ultimately — the steel in the ground. Here's that pipeline on the Scholars Walk canopy.

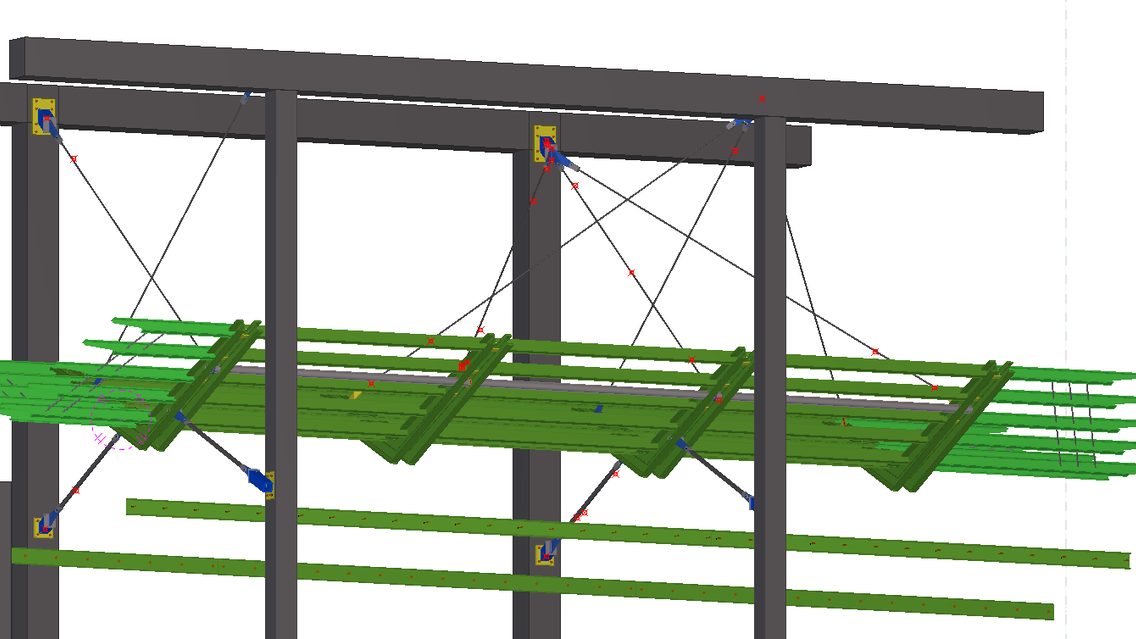

Tekla Structures 3D model of the Scholars Walk canopy framing, members color-coded by class — 01 · ModelCoordinated 3D BIM
Every tapered channel, plate, bolt and weld modeled in Tekla Structures.

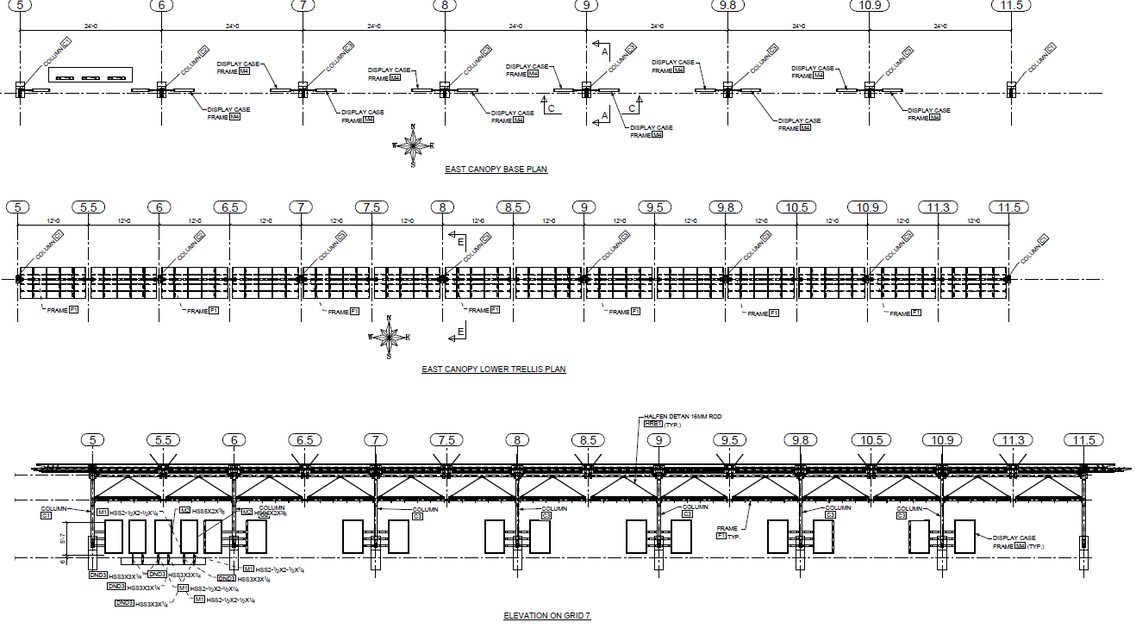

Steel shop-drawing elevation of the Scholars Walk canopy with dimensions and member callouts — 02 · DrawingsFabrication-ready sheets
Assembly and single-part drawings generated straight from the model.

The finished exposed-steel Scholars Walk canopy erected on the University of Minnesota campus — 03 · BuiltSteel in the ground
Erected on campus — the model proven true in the field.
